Mineral Water Filling: How a Bottling Line Works (2026)

Mineral water filling is the automated sequence that turns a treated, still water supply and an empty bottle into a sealed, labeled, shelf-ready product. On a modern line, rinsing, filling, and capping happen inside one block at anywhere from 2,000 to 36,000 bottles per hour. One detail most first-time buyers miss is that “mineral water filling” actually covers three different products, true natural mineral water, spring water, and reverse-osmosis (RO) water with minerals added back, and each one needs a different treatment train and, in some countries, a different legal label. This guide walks the full line stage by stage, explains how to size and spec it, and shows where the regulatory traps sit.

What “Mineral Water Filling” Actually Means

Mineral water filling is the line process where still water is treated, then the bottle is rinsed, filled, capped, labeled and coded for retail sale at rates from 2,000 up to 36,000 bottles per hour. There are actually three different products under the label “mineral water filling,” and the one you select determines the treatment train and the legal label. Sort out which one you’re making before you start thinking about machines.

• Natural Mineral Water A true natural mineral water – water that is taken from an underground protected source that already contains natural minerals. In the US, true natural mineral water is defined by the FDA (21 CFR 165.110) as having not less than 250 ppm (TDS) taken from a protected geological source and must also comply with the stipulation: “No minerals may be added to this water.”
• SPRING / SOURCE WATER – Bottled directly from the spring and slightly processed so the character is maintained without losing stability.
• RO water (often with added minerals) water taken from your town’s supply or the borehole and passed through reverse osmosis, then minerals added back so that it tastes better. According to the Food and Drug Administration, this qualifies as “purified water” on their books (as opposed to “spring water”, see below).

“Pure water” and “purified water” sit in the same family as the third option; what separates them from true natural mineral water is origin, native minerals versus minerals added back, which is exactly why a purchasing team should settle the category before choosing a line, and remember this is a sealed production line, not a self-serve water filling station. A bottler installing a high-recovery RO unit while believing it’s buying a “natural mineral water” plant has, on paper, bought the wrong product, and usually discovers it at the first label-compliance review, months after the quote was signed.

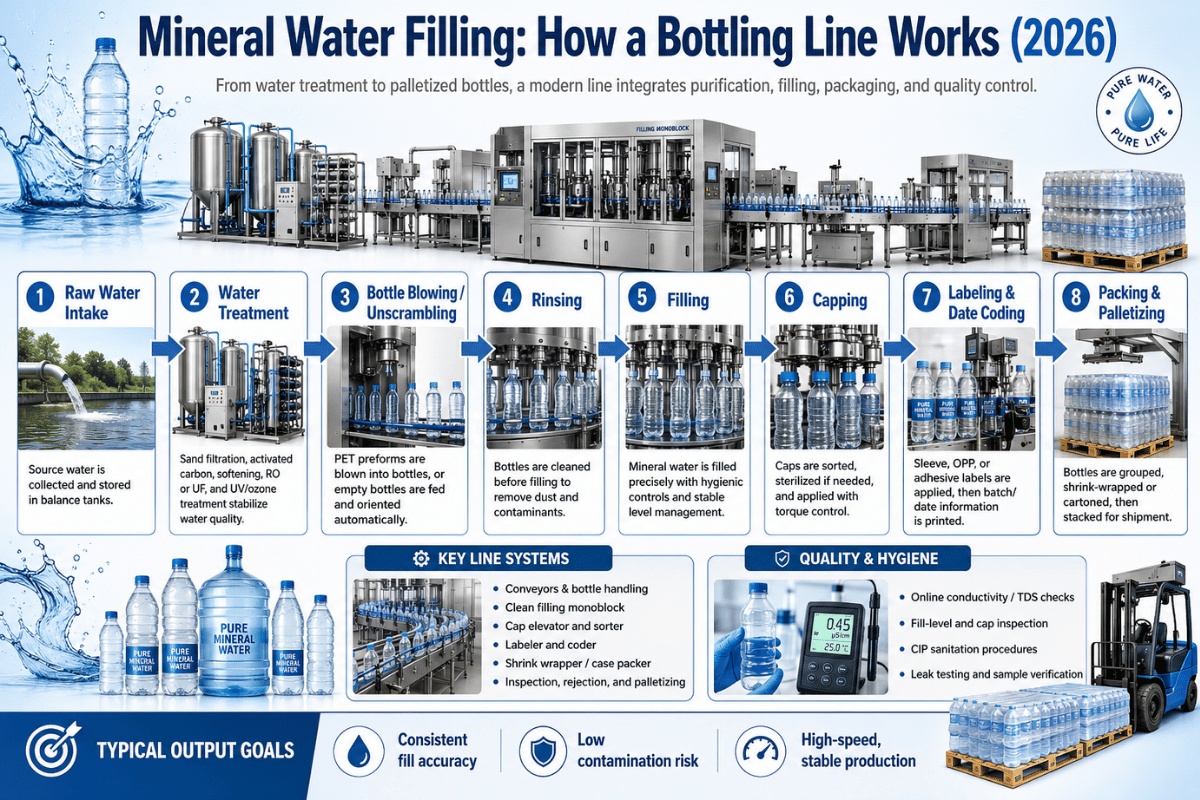

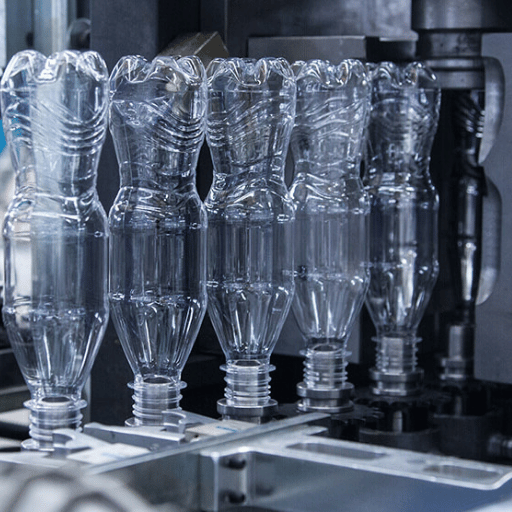

How a Mineral Water Filling Line Works: 9 Stages from Empty Bottle to Sealed Product

A mineral water filling line runs nine stages in sequence, from raw water to a packed, coded case; only the treatment and fill modules change between products. Most of it sits in a standard stainless frame on a servo drive with a clean-in-place (CIP) loop.

At the core of the line, the rinse-fill-cap monoblock run the filling process as one sealed unit: a water bottle filler doses each bottle, then the filling and capping stations close it before it meets the air.

The rinse, fill, cap monoblock

Stages 5–7 sit in one block, the rinser, filler and capping machine share a single frame and drive, so a bottle never leave controlled handling between rinse and final seal. This is why a fully automatic water filling machine is quoted by its module count (for example 24-24-8: 24 rinse heads, 24 fill valves, 8 capping heads). Typical specs run a fill-level error around ±3 mm and capping torque of 0.6–2.8 N·m, with sealing pass rates above 99.7%.

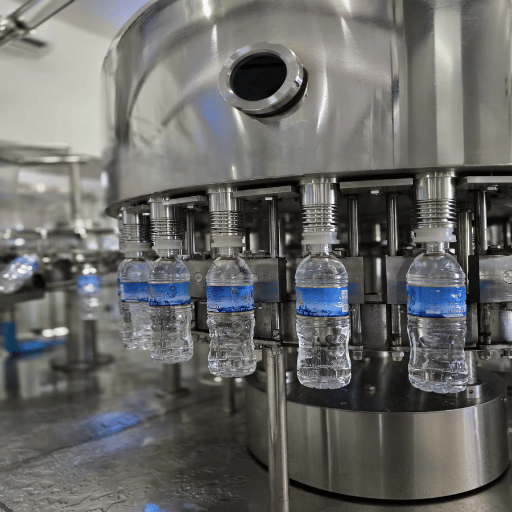

Fill Methods for Still Mineral Water: Gravity vs Isobaric vs Flowmeter vs Vacuum

Still (non-carbonated) mineral water doesn’t require the gas to be contained, and consequently the water is filled via either gravity and / or flowmeter heads. Isobaric (counter-pressure) filler – the style that’s frequently confused for filling water, is a design intended for carbonated products and will deliver less efficiently and be somewhat slower for still water. Select the correct filling style using the Still Water Fill Method Selector.

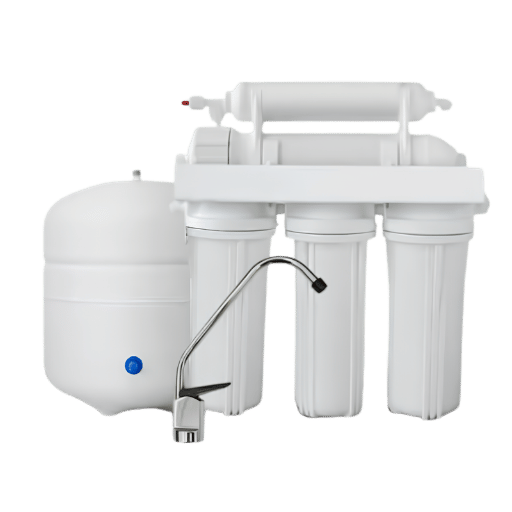

The Remineralization Gap: Why RO Purified Water ≠ Mineral Water

But here’s the No. 1 most often made planning mistake in this category, and the error is on the regulation side of the aisle. RO filters remove most of everything, including many of the minerals required to be even present for a beverage to be called a “mineral water.” The producers add in minerals just for better flavor-and think they’re producing a mineral water. Not in the U.S. according to the FDA standard of identity for mineral water, which requires at least 250 parts per million of Total Dissolved Solids derived naturally from its approved source. “No minerals are permitted to be added…” which RO water falls under “purified water.” So this gap-the point where most new bottlers draw their line to start-effectively ends up legally only producing purified water, and is why we refer to it as “The Remineralization Gap.”

Outside the US the jurisdiction become even more significant. Under UK and EU natural mineral water rules the water need to be approved and it should be bottled at source (the water can’t be transported in a tanker). It’s illegal to disinfect water, even ozone treatment requires special permission in order to treat for components such as iron or manganese and to ensure it has no unintentional disinfectant effect. So the common UV + ozone “sterilisation” step on a purified-water line can’t really be used in the same way on a ‘true’ natural mineral water line. Select your product type and consumer group prior to designing the treatment train.

“The first question we ask any new bottler is one word, natural or added? If the minerals are native to your source, you build a gentle, low-intervention line and you may call it mineral water. If you are dosing minerals into RO water for taste, that is a perfectly good product, but it is purified water on the label and the treatment line is a different build. We have watched buyers order the wrong line because nobody asked that question early; it is the most expensive mistake in this category.”

Mass Technology Engineering Team

One operating expense the brochures leave out: RO reject water. Domestic point-of-use units may consume 5-20 gallons per gallon made, but this figure doesn’t belong in a plant model. According to EPA’s WaterSense at Work, a commercial and institutional RO unit may recover between 50 to 75% of its incoming water, with efficient systems recovering more than 90% of water feed.

Size your raw water supply from the commercial number rather than the domestic one.

Sizing the Line: Daily Demand → BPH → Bottle Format

Capacity is in bottles per hour (BPH). Start by calculating daily production in BPH:

Higher tiers increase production capacity by adding additional rinse, filling, and capping modules to the inside of a monoblock as opposed to the speed of the machine, which is accomplished using the multi-station fill system as detailed in patent applications including US11584628B2. Hence the need to define your line by number of modules such as 24-24-8 and understand why you simply can’t speed up the craft-tier filler into the large industrial volume production line.

Can one line fill different bottle sizes?

Yes, most mineral water filling lines run 200mL, 250mL, 500mL, 1L, 1.5L and 2L PET bottles on the same monoblock using quick-change parts (grippers, fill nozzles, cap heads), and a format change takes one to two hours, so it pays to bundle similar formats into a run. A 5-gallon (HOD) line is a separate build because the bottle handling is different.

Hygiene, Compliance & Standards for Bottled Mineral Water

For those choosing to bypass discussions of minimum standards and regulatory compliance, the price will be paid when it’s time to export. Below is the Mineral Water Compliance Crosswalk, which delineates the various regulations applying to the bottled water products themselves as well as to the bottling equipment that make them possible and what those regulations specifically cover:

Quality Control & Shelf Life: Fill Accuracy, Contamination, Date Coding

Unlike add-ons,quality control on a mineral water bottling line is built into the system’s hardware. The three main lines of defense to address potential risks are: fill-level verification to ensure consistent product volume and reject under/over-fills, capping to prevent the ingress of contaminants (whether microbially or via airborne ingress via seal loss) by setting caps within specified torque parameters, and micro-biological control via achieving specific ozone residuals, among other controls, within the finished product and system clean-in-place. The six point fill operation places date and lot code information to ensure traceability if a recall were ever needed on a specific batch.

In the field, most common defect to get past inspect ion is a slightly loose cap. Even a capping torque 0.3 Nm below the closure spec can still pass a quick visual line check, but the seal breathes – and a bottler can ship a whole batch before a customer complains of the off-taste and short shelf life. This is the case for for torques and seal integrity on the line itself, not in the lab after the pallets are out the door.

How long does bottled mineral water last?

Unopened, sealed, and stored cool and dark, bottled water does not “expire” on safety grounds, and the FDA does not require an expiry date. The practical limit is taste and packaging chemistry: a peer-reviewed investigation found antimony migration from PET rises with time and temperature, breaching European levels at 60 °C for two weeks, so shelf life is set by storage temperature, not a date label.

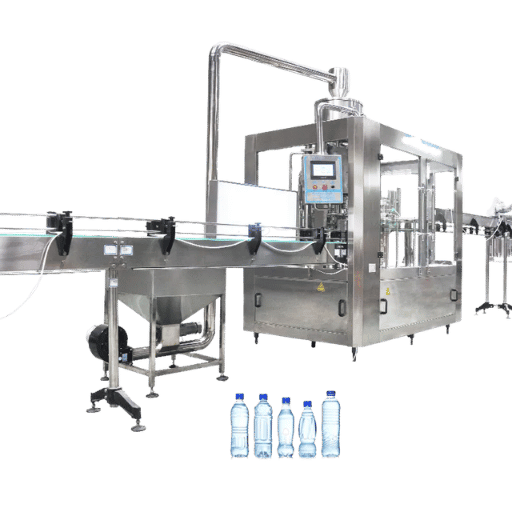

Setting Up the Line: Footprint, Utilities & the Path to Production

A mineral water filling line is a building project equally as much as it’s a machine purchase. Before the equipment arrives, plan space and utilities.

• Footprint: a small line (1,000–2,000 BPH) takes roughly 20–30 m²; a 5,000 BPH line needs around 40–60 m², plus space for a raw-water tank, warehouse, and operator access.
• Utilities: three-phase power (usually 380 V / 50 Hz), conditioned feed water designed to the RO recovery rate, commercial systems attain 50–75% recovery per US EPA WaterSense, so a 10,000 L/h package target could require 13,000–20,000 L/h of feed water – oil-free compressed air at approximately 0.7-0.8 MPa (7-8 bar) to blow and flush, and floor drainage suitable for CIP discharge.
• Path to production: layout design → factory acceptance test (FAT) → installation → operator training → after-sales support.

Mass delivers this as a complete production line and turnkey solution: layout planning, bottle design and on-site design services bring a new water plant or mineral water bottling plant from drawing to stable bottled water production. The line is built scalable, so production efficiency holds as you add shifts or SKUs.

How much space does a mineral water filling line need?

Allow 20–30 m² for an entry line and 40–60 m² for a mid-size line, then add the same space again for raw-water storage, finished-goods staging, and operator walkways. Ceiling height matters for the bottle blower, so confirm at least four metres of clearance early in the building search, before the layout is fixed, and leave a clear path for forklift access to the warehouse.

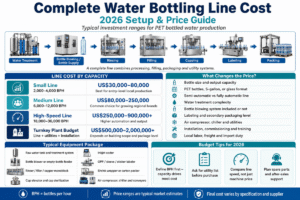

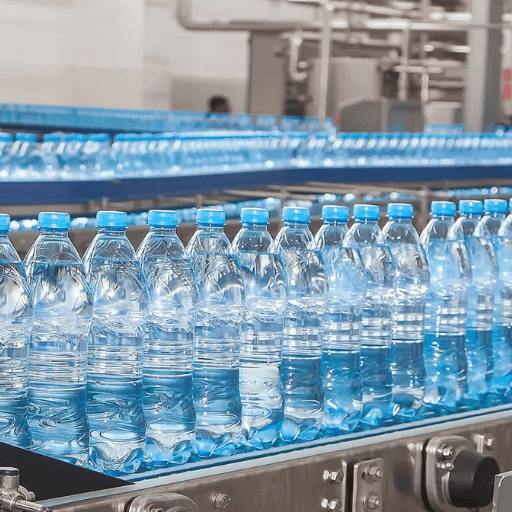

What a Mineral Water Filling Line Costs: Investment Tiers & Drivers

Headline equipment pricing is project-specific so take the following bands with a pinch of salt: Vendor price lists for 2025-26 see a small semi-auto line (approx. 500 – 2,000 BPH) coming in at some where in the ballpark of $50,000-$200,000. A full auto mid-range line is around $150,000-$500,000, and a stand-alone commercial RO unit will alone run for $3,000-$30,000 based on capacity.

Aautomation level, 304- vs. 316L stainless steel, scope of treatment ( purified vs true mineral ), Whether your bottling line will include its own bottle blowing machines or purchase of preforms, as well as the number of format changes required through out the line will all affect overall budget. For an actual cost estimate tailored to your specifications, consult this mineral water filling machine sales page and skip over the price list.

Here’s a classic mistake that occurs in equipment purchasing; a project manager set aside funds for the filling machine and ignores the cost of not only the RO and remineralization unit, but also the bottle blower and labeler. In fact, even on a turn-key bottling line project, the filling-rinsing-capping block only makes up for roughly half of the expenses of installed machinery. Therefore, a price that only lists “the bottling machine” is impossible to directly compare to one which lists an entire bottling line package.

As a rough payback check: a mid-tier line running 12,000 BPH at 60–70% utilization typically returns its installed cost in about 2–4 years, but that window slips fast if the RO recovery rate or the changeover time was specced wrong, because every percentage point of RO reject and every extra 30 minutes per format change quietly raises cost per bottle. That’s the real risk of buying on headline price: the cheapest filler can carry the most expensive line economics.

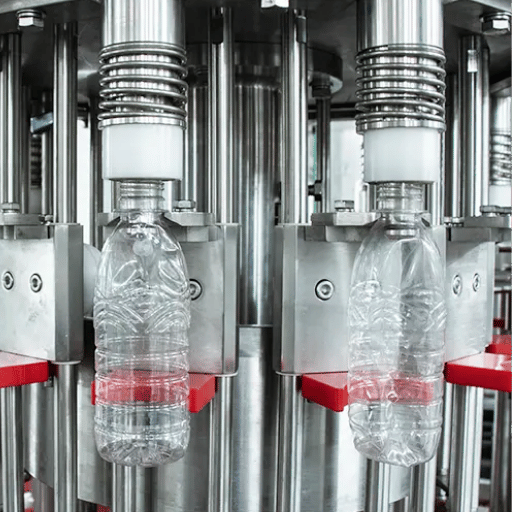

Choosing a Mineral Water Filling Machine & Supplier

Check for 304 or 316L stainless, though 316L should be used in environments with high chloride concentrations

A supplier that can take you from a water filling machine through RO and remineralization treatment, bottle blowing, and labeling under one roof removes the risk of stitching together four different suppliers, and keeps your brand’s specification consistent across the whole line.

Industry Outlook 2026: Premiumization, Functional Water & PET Sustainability

For a buyer specifying a line now, three shifts change what is worth paying for, and none of them is “the market is growing.” First, premiumization and functional or mineral-enhanced water mean a new line should have precise mineral dosing and blending control, because the product mix is moving toward added-value waters (where, as covered above, the “mineral water” label may not legally apply). Recent USPTO filings such as WO2023158764A1 point at higher-precision multi-liquid handling at the fill head. Second, packaging sustainability is now a spec, not a slogan: lightweighting (one North-American producer moved from a 14.5 g to a 9.1 g bottle, per Beverage Industryan older but illustrative figure) plus recycled-PET (rPET) compatibility belong in the blowing-machine conversation, and storage-temperature control protects against the antimony migration noted earlier. Third, tighter food-safety expectations (FSSC 22000 v7, 2026) raise the documentation and traceability bar on any new install. For a buyer specifying a line today, the practical move is to put two questions to the vendor before signing: can the bottle blower run recycled PET (rPET), and can the dosing skid hold a tight mineral target batch to batch? A line that answers yes to both still fits the product mix in 2030; one that does not buys you a retrofit you could have avoided. Market-size forecasts (premium bottled water is projected to grow at roughly a 6.7% CAGR) are useful context only; the spec decisions above are what protect a line over a 10-year life.
