Pen Making Machine

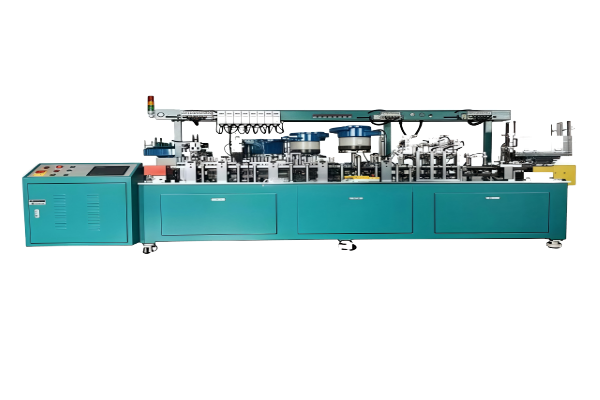

Pen Making Machine — Complete Automatic Pen Production Line
From pen barrel injection moulding to ballpoint, gel and marker assembly — one engineering platform, one supplier, one accountable line. Built under CE and ISO 9001, and backed by a 2-year warranty.
- Mass Technology: Pen Production Equipment
- 5 machine types: Injection molding, ballpoint, gel, marker assembly & decorating
- PLC automation: PLC + touch-panel HMI across the line
40–60 pcs/min
Sustained assembly throughput per line
140–800 ton
Clamping force range for pen barrel molding
2-year warranty
24-hour engineer response, 5-day global spare parts
Built to scale
From a first automatic line to multi-machine export-grade output
SYS_OVERVIEW // 01
Why a Pen Factory Needs Matched Machines, Not Mismatched Parts
DIAGNOSTIC_DATA
The most expensive mistake when setting up a pen manufacturing line is buying it the way you buy office supplies — one item at a time, from whoever you found cheapest that week. Buy a barrel injection moulder from one factory, an assembly machine from another, decorating presses from a third — and nothing ever indexes cleanly: commissioning drags out for months, and no one owns the handoffs between stages.
LOGISTICS_FLOW
This is a structural problem. A pen is not one thing but a short chain of writing-instrument manufacturing stages — the barrel and cap molding, refilling, tip and clip assembly, and surface decorating — and each stage works at its own pace. If the machines come from different vendors, nobody owns the line, throughput is capped by the slowest stage, and spare-parts logistics are fractured between three or four suppliers who have never spoken.
CORE_PLATFORM
Mass Technology builds the entire pen making line on one engineering platform.
The same PLC and touch panel language, same standards for pneumatic and servo controls, and same back-up channel; right through from the injection moulder to the heat transfer stage.
PROFIT_MARGIN
And that same discipline is also where the profit hides: according to a veteran pen manufacturer, in this business “the parts supplier makes the money.” A pen manufacturer that moulds its own caps and barrels, rather than buys them in, captures the margin a parts moulder would gather, and a buyer that owns both set-ups can regulate manufacturing costs instead of paying rent.
[SYS-OVERVIEW]
The Mass Pen Manufacturing Machine Line
The Mass Pen Manufacturing Machine Line
From Barrel to Finished Pen
Every Mass pen manufacturing machine belongs to one of five types, each owning one stage of the full chain. Each card below details one of the five machine types. Follow the link on each card to the detailed specification page. Choosing the wrong stage of pen manufacturing machine to buy first is a common mistake; the decision tree that follows relates pen type and manufacturing stage to the best machine to choose.
[SYS-READY] // FLOW CONTROL ENABLED
[MAP-OVERVIEW]
01
[PROC] Stage 1 · Molding

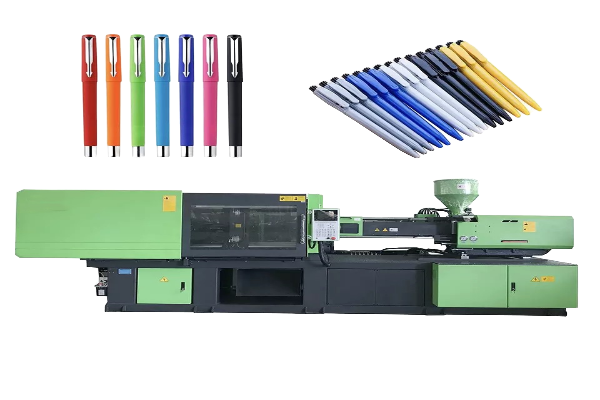

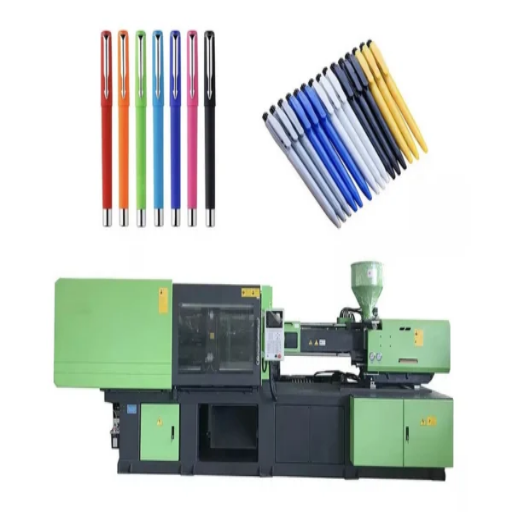

Pen Injection Molding

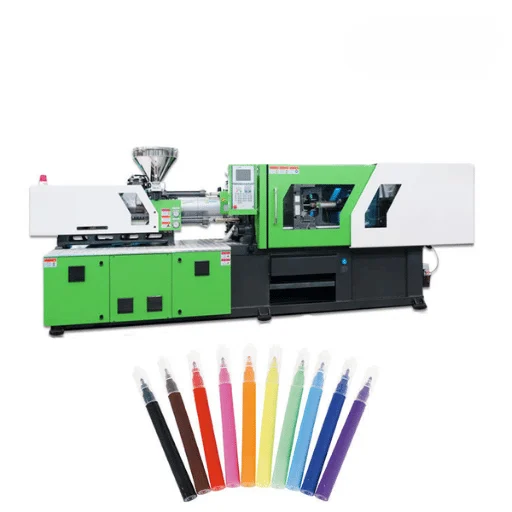

140–800 ton clamping force · PLC + closed-loop servo · PP, PS, ABS, PC · energy-saving servo system cuts power use by 30–50% · CE, ISO 9001.
Precision molds slim, thin-wall pen barrels, pen caps and pen holders, with consistent straightness and wall thickness.
02
[PROC] Stage 2 · Assembly

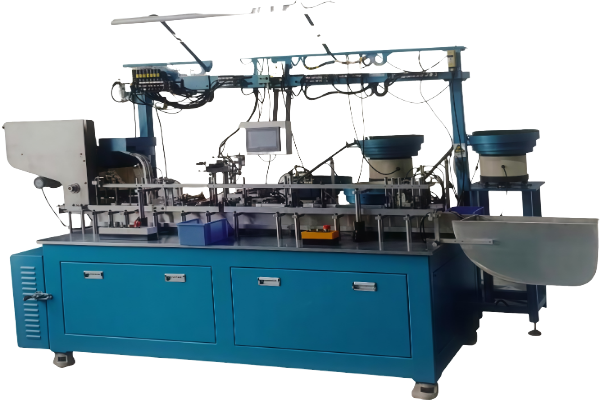

Ballpoint Pen Machine
Cam-driven, 50–60 pcs/min double-station · 1.5 kW, 380V 3-phase · PLC + touch panel + VFD · Airtac pneumatics.
Assembles stick, click, twist and gel-ink ballpoints; uses vibration feeding and mechanically locked cam timing.
03
[PROC] Stage 2 · Assembly

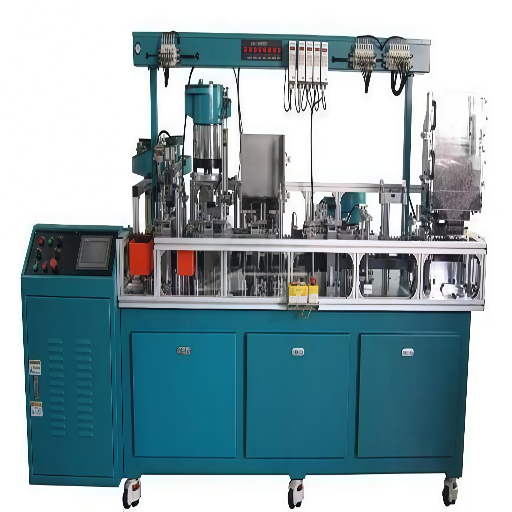

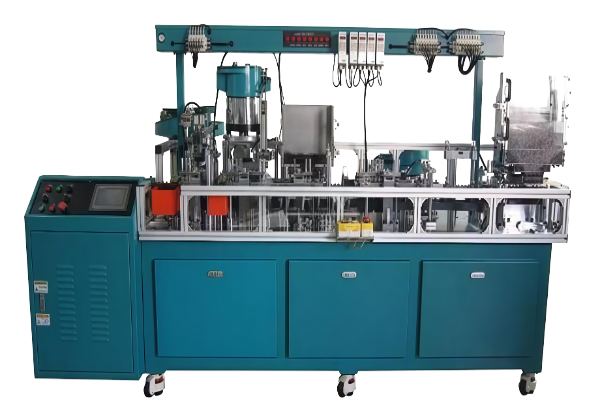

Gel Pen Machine
Fully automatic feed → refill insertion → tail-plug → cap assembly · PLC + HMI · auto counting + fault alarm · quick mold change.
Handles gel, ballpoint and neutral pens with high positioning accuracy and fast format changeover.
04
[PROC] Stage 2 · Assembly
Marker Pen Machine

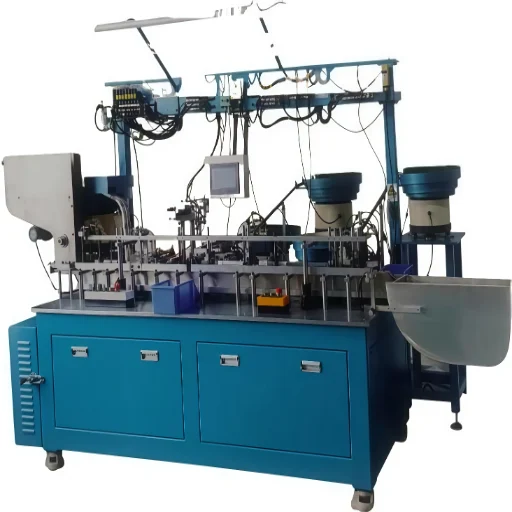

Model MS-AM-065 · 40–60 pcs/min · dual-output, chain-carry, horizontal · SMC pneumatics · Mitsubishi PLC · ISO 9001.
Refills and assembles marker and whiteboard pens with a space-saving horizontal layout.
05
[PROC] Stage 3 · Decorating
Bottle Packaging Machine
Model MS-RC200 · 50–60 pcs/min · 2.5 kW, 220V · PLC-controlled film winding and locating · circumferential print registration.
Decorates molded pen barrels with precise circumferential location for labels and print transfer.
[PROC] Filling & Packaging
Bottle Filling Systems
Injection molding + assembly + decorating, specified together · one PLC standard · one spare-parts channel · one accountable supplier.
High-precision filling systems for bottled ink and liquid packaging, matched to your product and output.
Machine Selection Decision Matrix
Use the matrix to match your pen product and production stage to the right machine before requesting a quote. These are selection guides, not hard limits — a borderline project should be reviewed with our engineers.
Pen type and production stage mapped to the Mass machine line. Assembly throughput figures are sustained, single-line.
Pen type and production stage mapped to the Mass machine line. Assembly throughput figures are sustained, single-line.
| [DATA] You need to… | Pen type | Machine | Indicative output |
|---|---|---|---|
| Mold barrels & caps in-house | All plastic pens | Pen Injection Molding | 140–800 ton clamping |
| Assemble ballpoints | Stick, click, twist, gel-ink | Ballpoint Pen Machine | 50–60 pcs/min |
| Assemble gel / neutral pens | Gel, neutral, ballpoint | Gel Pen Machine | Fully automatic line |
| Refill & assemble markers | Marker, whiteboard pen | Marker Pen Machine | 40–60 pcs/min |
| Decorate / print barrels | All molded barrels | Bottle Packaging Machine | 50–60 pcs/min |
| Fill bottles with ink/liquid | Bottled ink/liquids | Bottle Filling Systems | Varies by model |
“Buyers ask us to quote one machine, but the right question is which stage of the line they are missing. We would rather scope the whole chain — molding, assembly, decorating — on one control standard than sell a fast assembly machine that then waits on barrels from a vendor we have never met.”
×
