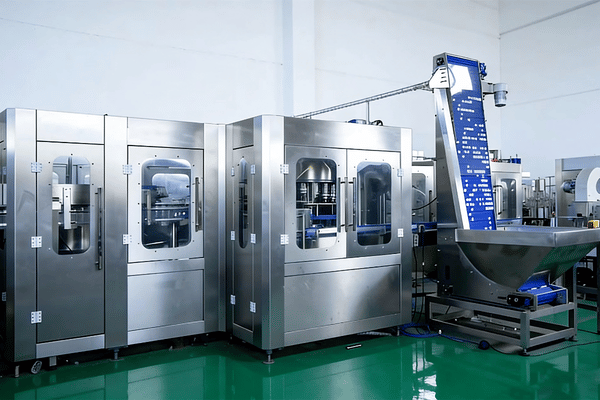

Juice Filling Machine
Juice Filling Machine — 2K-15K BPH PET Hot Fill, Aseptic & Production Lines
Juice filling machine for beverage brands on the way to 15K BPH from 2K BPH. Masstech’s 1 machine series-automated RCGF rotary monoblock-Rinse, Fill, Cap (3-in-1 units) for citrus, tea, energy drink,pulp-containing fruit juice in PET containers with FDA contact specifications, 2 year all-parts warranty and optional 5 working day international spare parts shipping readiness.
2K–15K BPH
Throughput Range
Hot / Cold / Aseptic
Filling Modes
50–115 mm
PET Bottle Diameter
3.91–6.41 kW
Power Draw
2-Yr + 24h
Warranty + Response
5-Day Parts
International SLA
From Concentrate to Capped Bottle: Juice Filling Challenges We Solve
A juice filling machine will combine rinsing, dosing and capping in a single rotary monoblock context, or ‘3-in-1’ or rinse-fill-cap configuration. RCGF is the standard machine configuration for PET bottles of 2,000-15,000 BPH, and is the basis for all the juice bottling machinery we engineer. Within most commercial Zhangjiagang juice filling machinery manufacturer line arrangements, the equipment’s mechanical platform is the same. What differentiates successful production lines in practice is the four specific failure modes detailed in the following section, which dutch the juice brand owner far more than any raw materials spec sheet could suggest.

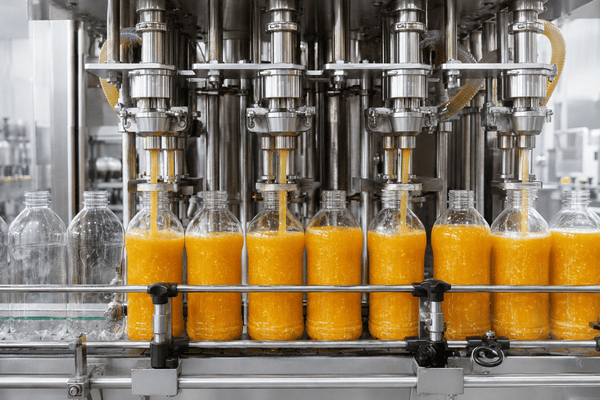

Pulp clogs single-head dosers
Complete fill of 100% citrus and tropical juices with >3% pulp in hours. Wide-orifice dual or multi head dia sets for pulp-rated mono-dosers sustain throughput under high-gravity charges.

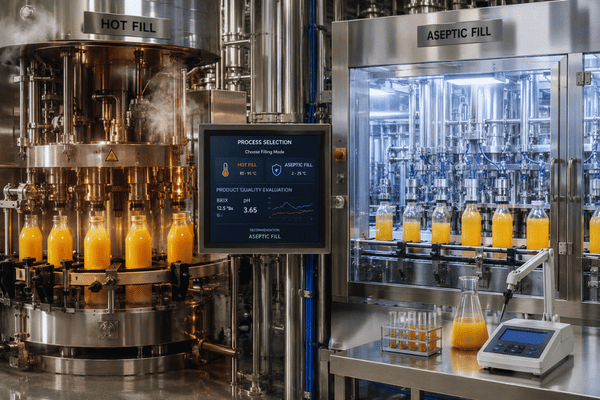

Hot vs aseptic indecision
Choosing 85-92 C operational mode pre-determination burns CapEx. Here, our Brix pH grid determines which mode your intended juice character profile actually requires.

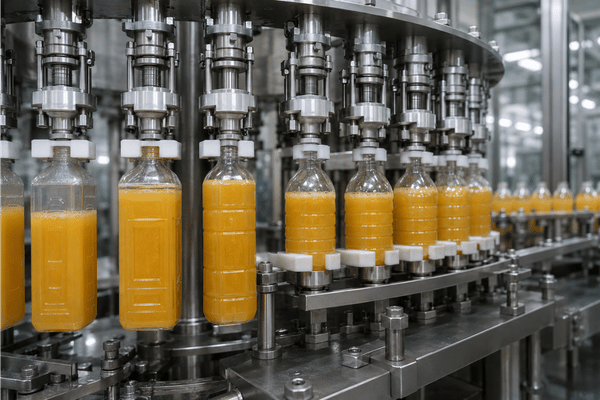

Inconsistent fill on shape changes
Round and square PET bottles will perform differently on the same valve. The design of bottle clamp and hygiene-appropriate pad geometry will determine whether you ship 250 ml or 750 ml on the same batching line.

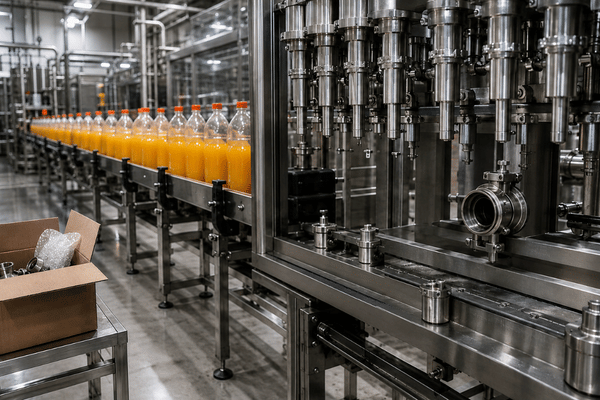

Spare parts arrive in week 6
A gasket in the valve will stop a 12000 BPH line from delivering X dollar per minute. The service schedule appears far more important to long-term output than the equipment specification in most production operations.
Masstech’s RCGF model line integrates each weakness with tested specification decisions- high viscosity valves with widened orifice for high pulp-laden juice, decision support data for high temperature AS asepctic mode, multi-shape clamp group tooling, PLC automated high precision filling, 5 working day spare part SLA at 15 years of export junk from Zhangjiagang fabricator.
Masstech RCGF Juice Filling Machine: Models & Capacity
Five specifications within the series cover BPH from regional craft juice (2,500 BPH) to large, nationwide brand operation (14,000 BPH). Each model uses the same valve, clamp, and capping system- tank size based on rinsing head count, filling head count, capping head count (the ‘R-F-C’ characters in model name).
RCGF Series Spec Table
| Model | 500 ml BPH | Bottle Dia | Power | Weight | L × W × H (m) |
|---|---|---|---|---|---|
| RCGF 8-8-3 | 2,500 – 3,000 | 50–115 mm | 3.91 kW | 2,000 kg | 1.8 × 1.6 × 2.2 |
| RCGF 16-12-6 | 3,500 – 4,000 | 50–115 mm | 4.61 kW | 2,500 kg | 2.1 × 1.6 × 2.2 |
| RCGF 18-18-6 | 4,500 – 6,000 | 50–115 mm | 4.61 kW | 3,500 kg | 2.45 × 1.8 × 2.2 |
| RCGF 24-24-8 | 8,000 – 12,000 | 50–115 mm | 5.41 kW | 4,500 kg | 2.75 × 2.18 × 2.2 |
| RCGF 32-32-10 | 12,000 – 14,000 | 50–115 mm | 6.41 kW | 6,000 kg | 3.5 × 2.2 × 2.25 |
Model Selection by Plant Stage
| Plant Stage | Annual Output Target | Recommended RCGF | Common Bottle Mix |
|---|---|---|---|
| Craft / Regional Launch | < 50K cases/yr | RCGF 8-8-3 or 16-12-6 | 250–500 ml, 1–2 SKUs |
| Co-Packer / Multi-SKU | 50K – 200K cases/yr | RCGF 18-18-6 | 250–1,000 ml, 3–6 SKUs |
| Regional Brand Scale-Up | 200K – 500K cases/yr | RCGF 24-24-8 | 330–750 ml, 4–8 SKUs |
| National Brand / Export | > 500K cases/yr | RCGF 32-32-10 | Full PET range, multi-shape |
Across the entire RCGF spectrum, the 0.3-0.7 MPa demand for compressed air is the same, as is the aseptic-water rinsing medium and the plastic screw cap mechanical platform. Transition between square and round PET bottle shape require changeover tooling, but no valve reengineering within a given model.
FOR EN: TECHNICAL DETAIL
Plastic bottle clamps are made from 304 grade stainless steel with olefin polymer composition capable of meeting FDA 21 CFR 177.1520 or equivalent specifications. Filling heads employ a level-fill design with PLC maintained metering system capability to hold fill accuracy within 2 ml on 500 ml configurations.
Volumetric metering is unnecessary for speeds greater than 8000 BPH. Automatic (class 2 or above) and semi-automatic (category 1 level) options share the same fill valve geometry. Automation is placed in the rinsing upstream, the capping downstream, not in the fill component itself.
Hot Fill vs Aseptic vs Cold Fill: Choosing Your Juice Filling Technology
Filling temperature is dictated by juice Brix, pH and desired shelf life – not by sales-speak. The FDA requirement for commercial sterility of acidic beverages is greater than 90 C for 15 seconds (industry process reference, consistent with-US-patent-designed flash pasteurization at 176-203 F). Our lookup table below columns six common juice blends against the filling mode and sterilization method we recommend. Few vendors publish this guidance – they presume the customer will know.
Brix × pH × Filling Mode Decision Matrix
Juice Profile
Brix
pH
Recommended Mode
Engineering Reason
Citrus (orange, grape fruit)
11–13 °Bx
3.0–3.8
Hot Fill (85–92 °C)
Acid + heat enables 6–9 month ambient shelf life without preservatives
Apple / grape
11–14 °Bx
3.3–4.0
Hot Fill or Aseptic
Both viable; aseptic preferred for premium clear-label brands
Vegetable (carrot, celery)
4–10 °Bx
4.5–6.0
Aseptic (UHT)
Low acid above pH 4.6 requires sterile cold-fill per FDA 21 CFR 113
Coconut water
5–7 °Bx
4.5–5.5
Aseptic
Heat > 80 °C damages flavor and nutrient profile
Tea / RTD coffee
5–10 °Bx
5.5–7.0
Aseptic or Hot Fill
Flavor-sensitive; aseptic protects polyphenols and aroma compounds
Energy / sports drinks
6–11 °Bx
2.8–3.5
Hot Fill
Acidified per FDA 21 CFR 114; acid level supports hot-fill safety
Three Filling Modes — What Actually Differs
Hot Fill (85-92 C):
juice is flash-pasteurized and filled hot into HPET bottles. Heat remaining in the bottle sterilizes closure. Ambient shelf life 6-9 months. CapEx optimization; suitable for most acidified beverages.Aseptic (UHT cold sterilized):
juice and packaging sterilized separately and assembled cold in a clean zone. Shelf life 9-12 months ambient. CapEx up; retains flavor profile in heat sensitive juice.Cold Fill:
juice filled cold. Convenience chilled distribution. Produces “fresh squeezed” and “HPP pressed” types. Capital cost minimized; logistics investment increased.Masstech Juice Filling Machine Solutions
Hot Fill Juice Machine: Specialized 85–92 °C Solutions
Bottles of citrus, colas, tea, tomato juice, energy drinks, sports beers are in the “hot fill” default. Masstech hot fill juice machine build upon base RCGF platform adds HR PET bottle handling, tube fill portcans and Neck-Set-NecksPreterm option.
Filling temperature has to be tolerated by the bottle – the shown HR-PET bottles fill at up to 85 °Celsius in the 250-330 mL commercially proven industry templates (industry-confirmed spec per Pretium PET Hot Fill design). Sidel’s JNDDIT hot-fill platform rotates the bottle during the exteriors cap contact phase up to 110 degrees to sterilize headspace and cap interiors.

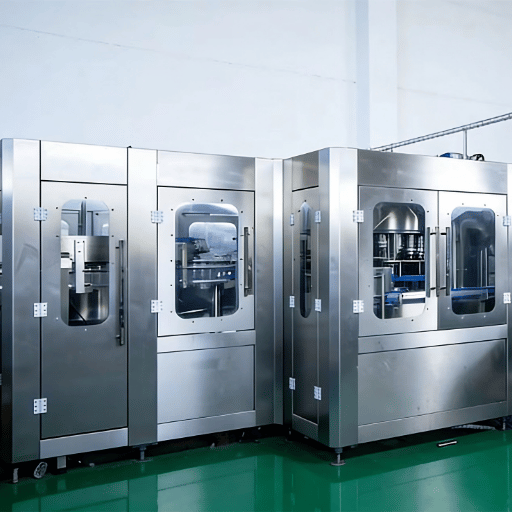

Hot Fill Juice Machine — Dedicated Hot-Fill Line
- Filling temperature 85-92 C, meets FDA-acidified-food regulation ( 21 CFR 114)
- Compatible with HR-PET bottles 50-115 mm chain dia, 250 mL to 2 L
- Pasturizer + chill-looped integration offered as Tier 3 / Tier 4
- Suitable for: 100% citrus, tea beverages, tomato juice, energy drinks, sports drinks
- Ambient shelf life 6-9 months (may be more or less depending upon formulation + storage temp)
PET Juice Filling Production Line: Beyond a Single Machine
A filler monobloc is among five integrated stations within a turnkey juice line. A purchased monoblock will only produce at the capacity of the slowest neighboring machine – the most common bottle neck being the stickerer or bloster.
Filling line throughput is scheduled in BPH to equal the filler BPH. An 8,000 BPH labeler and a 12,00 BPH RCGF 24-24-8 will leave over 30 percent of theoretical output on the table due to the bottleneck. Mastecht sizes each station to client’s selected RCGF, with operator training and CIP integrated into plan completed in 14-21 days FT.

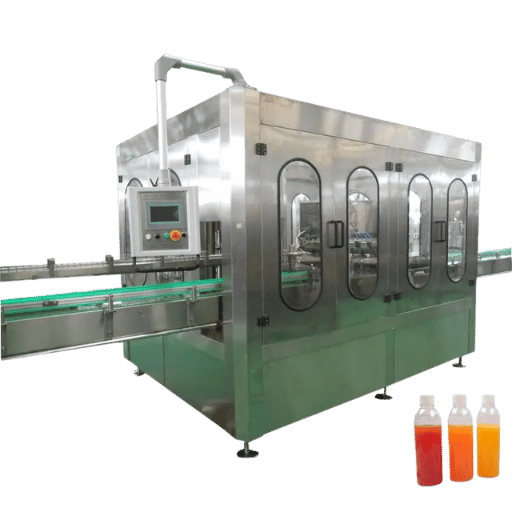

Complete PET Juice Filling Production Line
- Throughput 2,000 – 36,000 BPH across the Masstech range
- 5 stations turnkey: preprocessing blowing RCGF labeling packing
- RO water treatment 0.5 – 50 T/H in courtesy of other Masstech water plant range
- On-site operator transplants + installations 4-6 weeks since FOB
- CIP system integrated for sanitary changeover
01
Pre-Processing
RO water + concentrate prep, sugar dissolver, homogenizer, UHT sterilizer
02
Blowing
PET preform → bottle, linear / rotary, up to 32 stations
03
RCGF Filling
Rinse, fill, cap monoblock at line speed
04
Labeling
Sleeve, wrap, or self-adhesive, 6–8K BPH match
05
Packing & Palletizing
Shrink wrap, case pack, automated palletizer

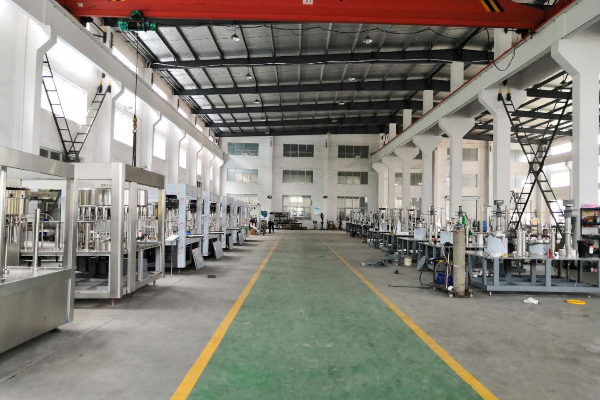

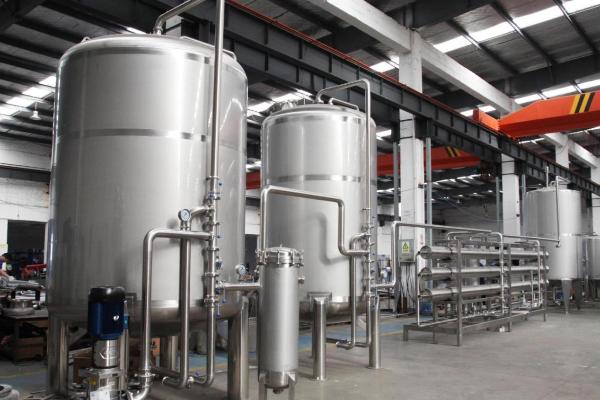

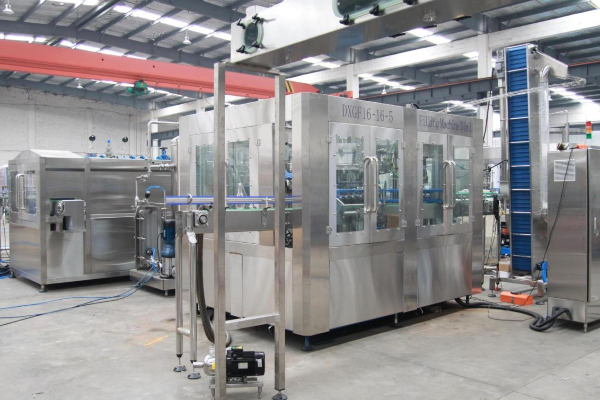

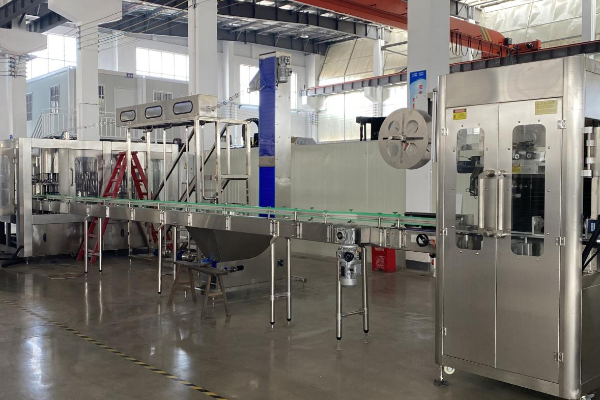

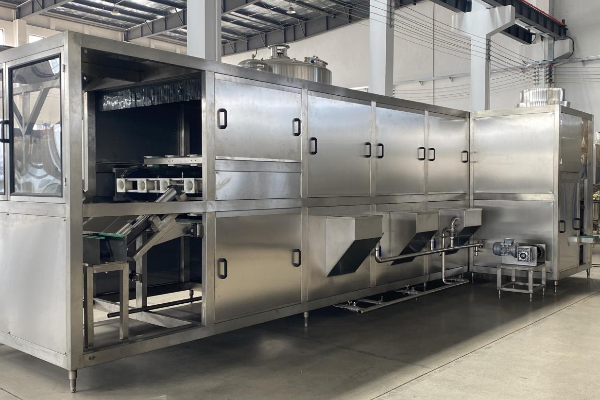

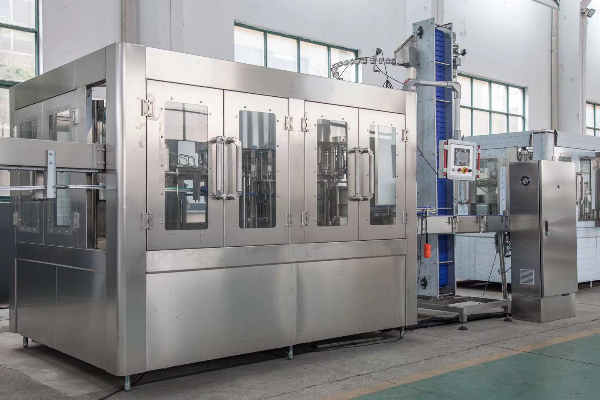

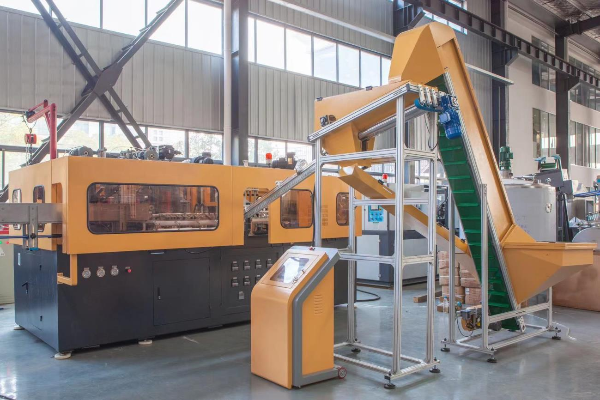

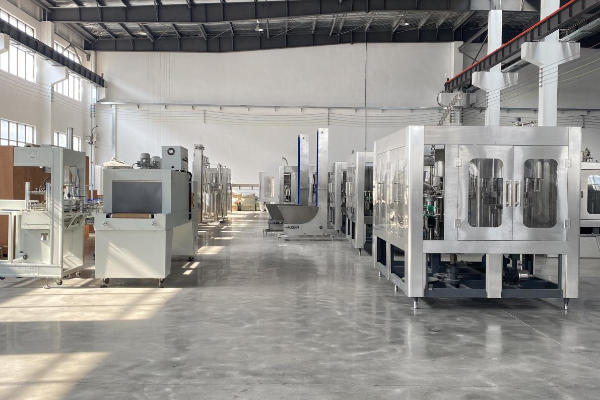

Juice Filling Machine Manufacturing Facility
Certifications & Compliance Frameworks
Juice filling equipment challenges 5 overlapping regulatory regimes. Food safety (FDA + ISO 22000), Machinery safety (CE + EN), and sanitary design (3-A). Each reaches a different group of people – quality, plant engineering, and procurement audit.
Food Safety
FDA 21 CFR 113
Low-Acid Canned Foods applies to “above pH 4.6” vegetable juice, coconut water filling lines.
Food Safety
FDA 21 CFR 114
Acidified Foods applies to “below pH 4.6” citrus, apple, energy drinks.
Global Framework
ISO 22000:2018
Food Safety Management — global HACCP-aligned framework.
Facility Certified
ISO 9001:2015
Quality Management — Masstech facility certified.
Sanitary Design
3-A Sanitary Standards
US dairy/ beverage sanitary design; scope of equipment certification each per 3-A Sanitary Standards Inc.
Machinery Directive
CE 2006/42/EC
EU Machinery Directive — Masstech CE-marked since 2018.
Electrical Safety
EN 60204-1
Machine safety — electrical equipment of machines.
For Proc: Honest Scope Framing
Masstech’s RCGF series ships with FDA 21 CFR 177.1520 raw-material conformance – that is so contact components are made from FDA listed olefin polymers. This is material-level conformance and is separate from full-system FDA Process Authority filing (21 CFR 113 / 114), which rests with the juice processor with their PA. We document material conformance per machine and give the processor the data their PA will need.
Procurement Guide: Pricing, Lead Time & After-Sales
Most filling-machine vendors keep pricing underneath “Contact Us” forms. We publish ranges so you can budget before sending the RFQ and then refine for details during the spec-out call.
4-Tier Juice Filling Machine Pricing Transparency (USD, FOB Zhangjiagang)
Tier
USD Range
Configuration
Best For
Tier 1 — Entry
$35K – $80K
RCGF 8-8-3 or 16-12-6, semi-auto labeling, manual case packing
Co-packers, < 50K cases/yr, 1–2 SKUs
Tier 2 — Standard
$80K – $140K
RCGF 18-18-6 with auto-rinser, auto-capper, sleeve labeler
Regional brands, 50K–200K cases/yr, 3–6 SKUs
Tier 3 — Premium
$140K – $220K
RCGF 24-24-8 + integrated CIP, automated palletizer
National brands, 200K–500K cases/yr, 4–8 SKUs
Tier 4 — Turnkey
$220K – $280K+
Full line: water treatment + blower + RCGF + labeler + packer
Multi-SKU plants, 500K+ cases/yr, export focus
Pricing equivalence ranges depend on bottle dia, cap type, sleeve format, integration scope and scope. FOB Zhangjiagang; CIF and on-site quoted separately for specific destination.
5-Year TCO Framework (Silver-Tier Estimate)
See beyond this CapEx price. The typical 5-year TCO for a Tier 2 RCGF 18-18-6 line breaks down as follows – CapEx ( 60%) , spare parts & CIP chemicals ( 15%), energy (at 4.61 KW) ( 10%), unplanned downtime ( 10%), operator training ( 5%) – consult industry TCO breakdowns for category.
Australian B2B Buying “short list” that most “hidden cost” includes the CIP chemicals and unplanned downtime related to quality of service SLA delivery. Improving parts lead-time from 6 weeks to 5 days alone means earlier production, reducing unplanned downtime multiple within 5 years.
Lead Time + Service SLA
Manufacturing
60–90 days FOB after deposit + final design freezeSpare-Parts Dispatch
5 working days by international courier (DHL / FedEx priority)Engineer Response
24 hours via WhatsApp + email, time-zone coverageOn-Site Installation
14–21 days + operator training included in Tier 3 / Tier 4Advanced Juice Filling Machine Tools
filling tech selector
Determine the optimal filling technology (gravity, piston, or vacuum) tailored to your specific juice viscosity, pulp content, and production requirements. Ensure maximum efficiency for your bottling line.
Launch Tool
capacity sizer
Accurately calculate your required machine capacity and output volume. Input your bottle sizes and target hourly production rates to find the exact equipment specifications your plant needs.
Launch Tool
Juice Filling Machine FAQ
How much does a Masstech juice filling machine cost?
Tier1 entry-level packages from $35K USD FOB Zhangjiagang for the RCGF 8-8-3 8-8-3 Semi-automatic labeler. Tier4 complete lines from $280K+ cash. The 4-tier table above.
How does hot filling differ from aseptic filling?
Hot fill heats the juice to 85-92 C then fills hot into HR-PET bottles. The residual heat kills all micro-organisms by sterilising the package. Aseptic sterilises juice and packaging separately, then fills cold in a sterile zone; shelf life is extended to 9-12 months ambient versus 6-9 months for hot fill. Above our Brix pH matrix maps your juice profile to the suitable mode.
Can the RCGF series handle juice with pulp?
Yes for pulp levels up to roughly 3-5% in standard valve configurations. For higher pulp loads (100% squeezed citrus with pulp, or fruit smoothies) Masstech supplies a wider-orifice valve assembly on RCGF 18-18-6 and above. We also recommend the dedicated Hot Fill Juice Machine line for >5% pulp.
How fast does the RCGF 18-18-6 run?
4,500-6,000 BPH at 500 ml. First number (18) is for rinsing heads, second (18) is for filling heads, third (6) is for capping heads. Power draw is 4.61 kW; machine dimensions 2.45 1.8 2.2 m.
How does shelf life compare for hot-filled versus aseptic juice?
Hot-fill citrus and acidified juices normally gain 6-9 months ambient shelf life, an Aseptic UHT process adds another 3-6 months; it also handles low-acid products (vegetable juice, coconut water) which hot fill cannot. Both figures are subject to formulation, packaging oxygen barrier, and storage temperature.
Does Masstech provide installation and operator training?
Yes. Tier 1 includes shop-floor commissioning support remotely. Tier 2 includes 7 days on-site installation. Tier 3 and Tier 4 include 14-21 days on-site installation plus operator training in English and one other language as specified.
How does the warranty and spare-parts policy work?
2-year warranty includes all machine parts not only the monoblock core. Spares are shipped within 5 working days by international courier from Zhangjiagang. Engineer response time is 24 hours via WhatsApp + email. Our service SLA is included in every Tier (this is not a paid premium contract).
Which certifications does the Masstech juice filling machine carry?
CE 2006/42/EC machinery directive, EN 60204-1 machine safety, ISO 9001:2015 quality management at the Zhangjiagang facility and FDA 21 CFR 177.1520 raw-material conformance for contact parts. Full-system FDA 21 CFR 113 / 114 Process Authority filing is the responsibility of the juice processor we will provide the material documentation their PA needs.
Can the machine fill both square and round PET bottles?
Yes. Our bottle clamp design will fit square and round PET formats from 50-115 mm diameter. Changing between bottle shapes takes 30-90 minutes depending on neck format; no adjustment to the valve is necessary between the same RCGF model.
How long is the lead time for an RCGF juice filling machine?
60-90 days from deposit and final design sign-off FOB Zhangjiagang. 90-120 days for Tier 4 turnkey lines due to the additional pre-processing and palletising stations. Transit and on-site installation CIF will be estimated separately depending on final destination port.
